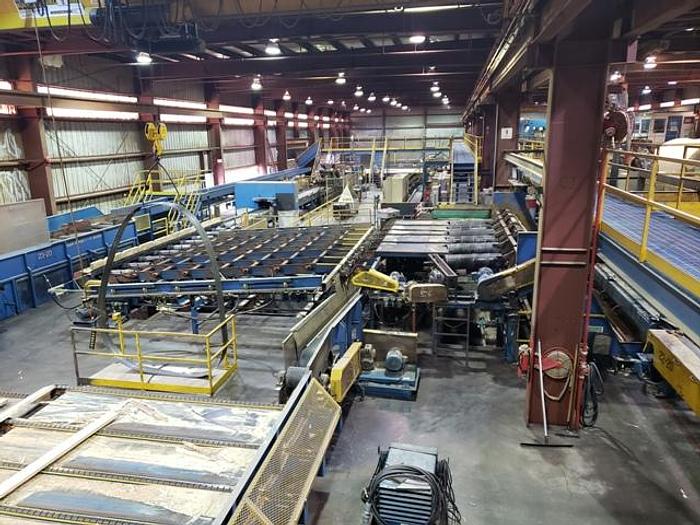

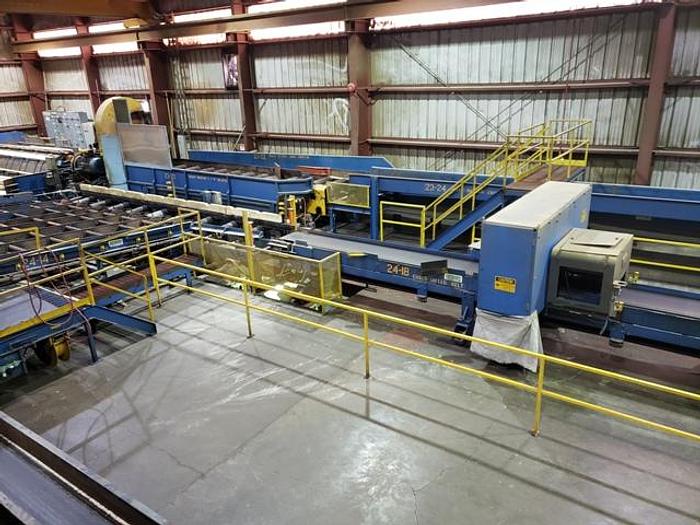

NEWNES LINEAR EDGER C/W ROBO EDGER SYSTEM

NEWNES LINEAL EDGER OPTIMIZER consisting of:

-Right Hand (lumber flow from left to right)

-3" x 18" x 20 foot capacity (24" envelope)

-Bar type unscrambler

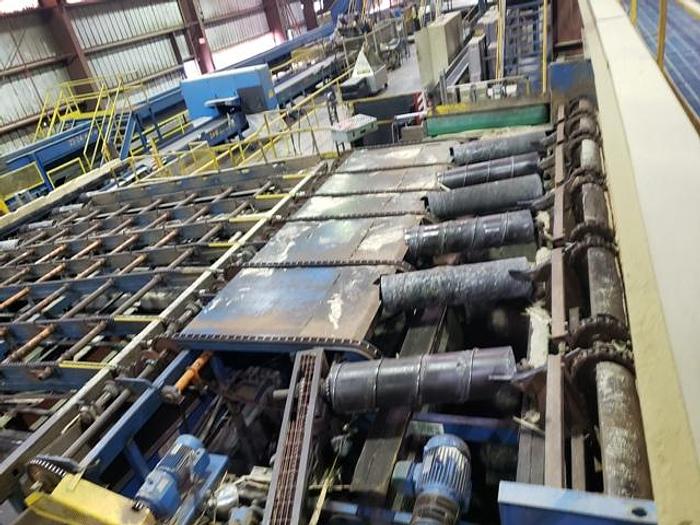

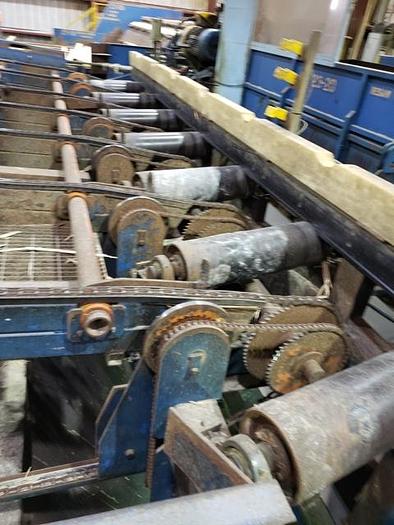

-Angled Even ending rollcase c/w transfer chains

-Turn/Pass/Drop Out Gate

-Queuing Transfer deck c/w seven (7) air operated hook stops

-Lineal Edger Infeed System c/w Nine (9) angled bedrolls and linebar

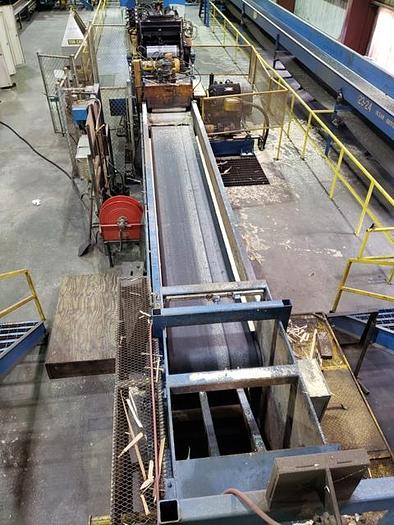

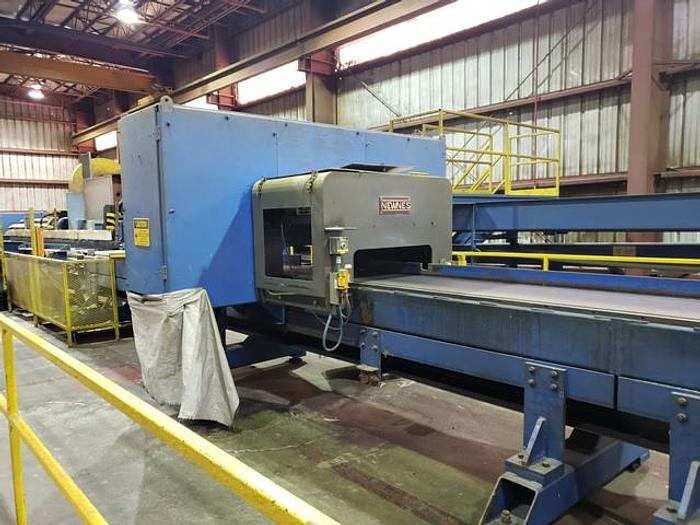

-Scan belt c/w scan frame

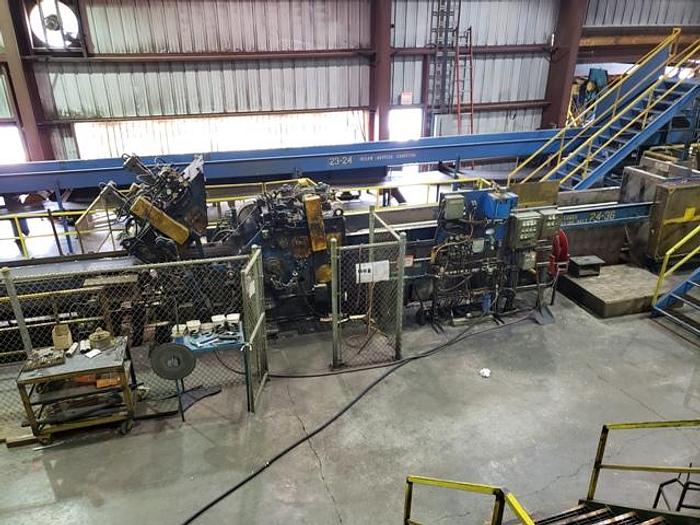

-Mcgehee Three (3) saw Robo Edger consisting of:-

-Clam shell opening main frame

-Drive base for arbor motor and feedworks drive

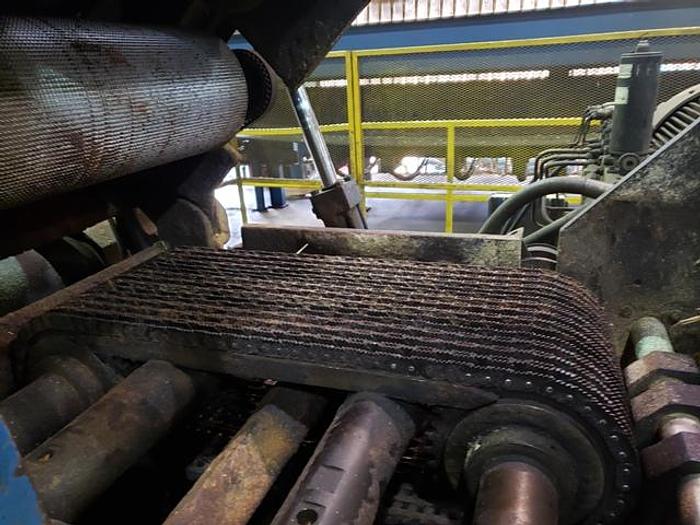

-Infeed chain bed c/w two (2) driven air operated pressrolls

-#3 splined bottom arbor assembly c/w direct coupled arbor motor

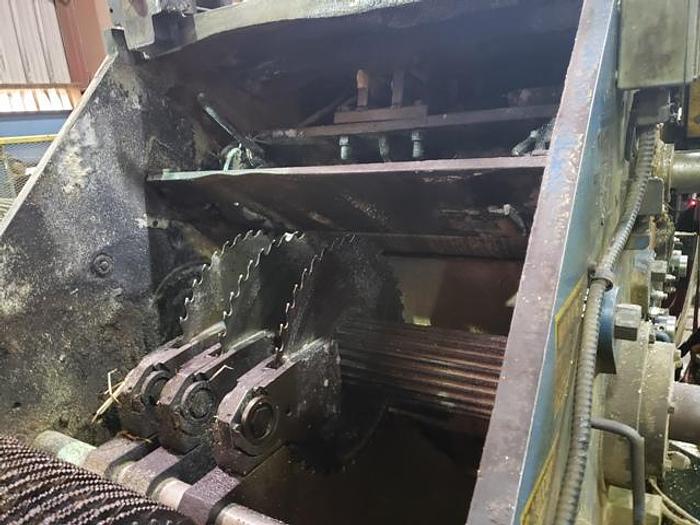

-Three (3) saw Robo shifting saws c/w linear positioners

-Two (2) outfeed bedrolls and two (2) driven air operated outfeed

pressrolls

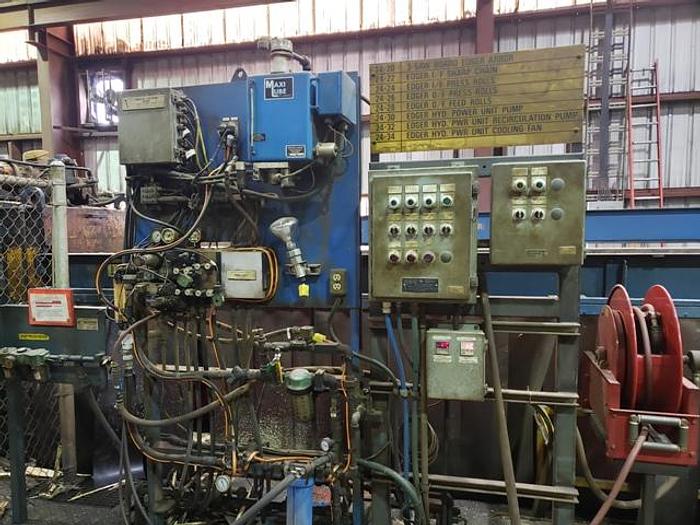

-Sawguide lubrication system

-Outfeed belt #1

-Picker finger assembly c/w two (2) servo positioned picker fingers

-Outfeed belt #2 c/w clearing roll

-Setworks hydraulic power unit

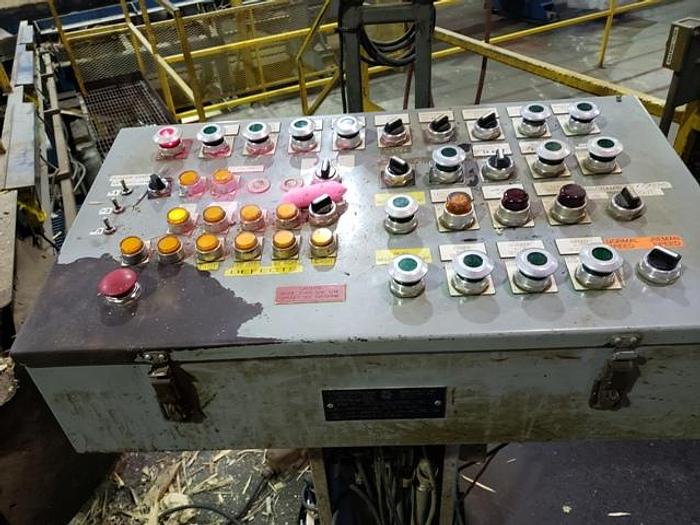

-Operators console

-MCC/VFD for the system (480/3/60)

-Newnes Linear Board Scanning and Optimization system (obsolete)

-No PLC based machine controls (obsolete Modicon)

-Still installed
