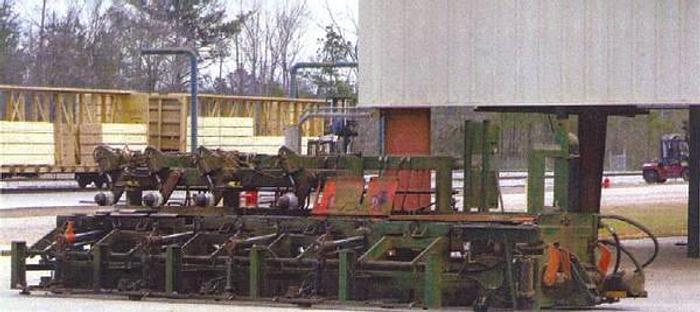

Hi-Tech LH Edger Optimizer Infeed Table

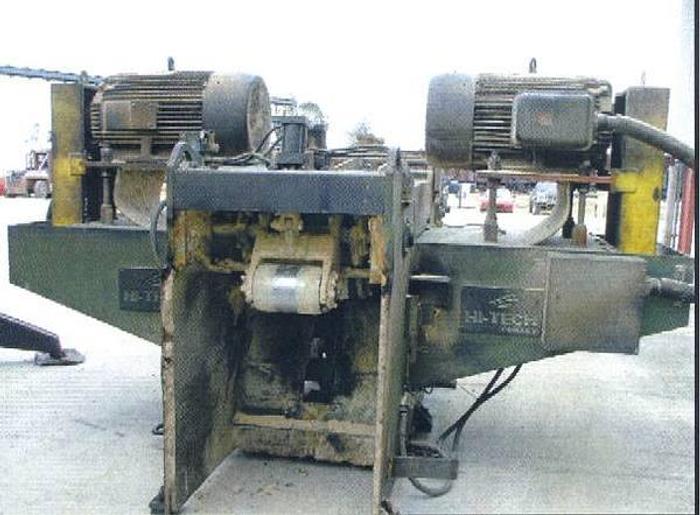

- Left hand - 8' to 20' - 2" to 6" thick - Up to 24" wide - Built in 2001, shut down 2006 - Up to 26 bds/min @ 600 FPM, 12' average length - Positioning feed table c/ w - Heavy duty fabricated main frame - Four (4) 36" stroke positioning pin assemblies - Four (4) air operated catcher assemblies - Four (4) overhead air operated idling pressroll assemblies - Center chainway assembly, no head shaft or drive, tail shaft assembly c/w air tensioning system - Five (5) sections of air operated lift pan assemblies - Ten (10) strand head shaft assembly for transfer deck c/w electric drive - Two (2) saw edger c/w - Two (2) stub shaft saw arbor assemblies - Two (2) 150 HP Toshiba arbor motors c/w belt drive assemblies - Two (2) Linear positioners - One (1) infeed and one (1) outfeed idling pressroll c/w air cylinder lift - No setworks hydraulic power unit - No controls or scanning
